VTOL

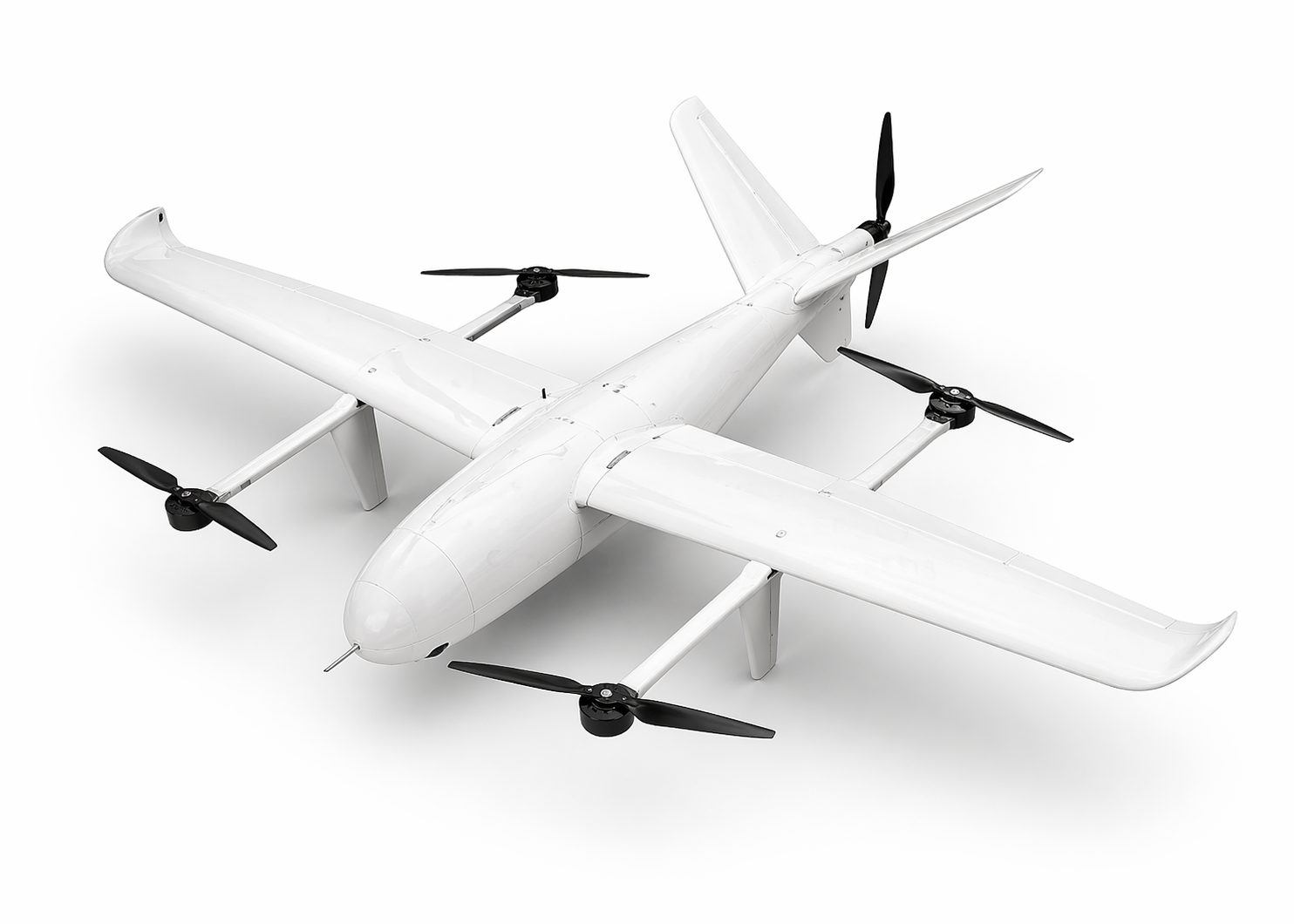

TAPL60H VTOL Drone
Service Title: Long-Endurance VTOL Drone for Mapping & Surveillance
Description:
TAPL60H is a high-performance VTOL (Vertical Take-Off and Landing) drone designed for long-range mapping, surveillance, and aerial data collection. With fixed-wing efficiency and multi-rotor flexibility, this UAV delivers extended flight time, high-speed coverage, and precise data acquisition. Its lightweight composite construction and advanced autopilot system make it ideal for large-area operations and professional surveying missions.
Key Features:
- VTOL capability (Vertical take-off & landing)
- Long endurance up to 120 minutes
- High-speed and long-range coverage
- Supports EO/IR and LiDAR payloads
- ArduPilot compatible autopilot system
- Lightweight carbon fiber composite body
Technical Specifications:
🔹 Physical Specifications
- Wingspan: 2500 mm (2.5 meters)
- Fuselage Length: 1200 mm
- Construction: Carbon Fiber + EPO Composite
🔹 Performance
- Payload Capacity: Up to 2.0 Kg
- Flight Time: Up to 120 minutes
- Cruise Speed: 20 – 25 m/s
- Max Speed: 35 m/s
- Range: Up to 60 Km
🔹 System & Components
- Autopilot: ArduPilot Compatible
- Battery: 6S 30000mAh × 2
🔹 Payload Compatibility
- EO/IR Cameras
- Mapping Sensors
- LiDAR (Optional)
Applications:
- Aerial mapping & surveying
- Long-range surveillance
- Infrastructure inspection
- Agriculture & land monitoring
- Defense & security operations
