10 L Agriculture Drone

Service Title: 10L Agriculture Spraying & Seed Spreading Drone

Description:

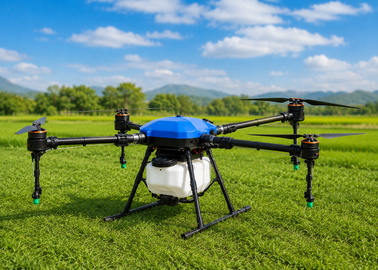

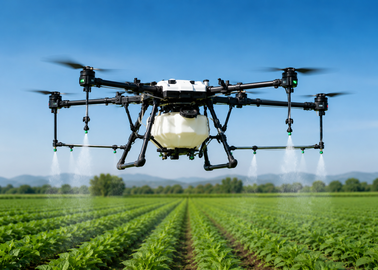

AGRI KRANTHI 10L is a high-performance agricultural drone designed for efficient crop spraying and seed spreading. Built with advanced flight control systems and reliable electric propulsion, this drone ensures precision farming with reduced manual effort. It delivers optimal performance under varying environmental conditions while maintaining safety, accuracy, and operational efficiency.

Key Features:

• Auto spray & seed spreading functionality
• 10L payload capacity for agricultural operations
• Stable flight with autonomous navigation
• High-efficiency electric propulsion system
• Smart failsafe & return-to-home features
• Designed for precision farming applications

Technical Specifications:

🔹 Physical & Performance

• Maximum Take-off Weight: 25 Kg
• Endurance: Up to 20 minutes (with payload)
• Range: 1 KM (VLOS)
• Max Operating Altitude: 20m AGL
• Operating Temperature: 0°C to 50°C
• Wind Resistance: Up to 8 m/s
• Max Speed: Up to 8 m/s
• Battery: 22000mAh × 2 (6S LiPo)

🔹 Flight & Operation

• Launch Type: Vertical Take-Off & Landing (VTOL)
• Flight Modes: Auto Spray, RTL (Return to Launch)
• Propulsion: Electric propulsion system

🔹 Safety Features

• Return-to-home on communication failure
• Low battery warning at 30%
• Auto return at 20% battery
• Geo-fencing capability
• Altitude restriction (max 20m AGL)

🔹 Ground Control System (GCS)

• Controller: Skydroid H12 Display
• Frequency: 2.4 GHz (Up & Down Link)
• Functions:
  • Flight planning & waypoint navigation
  • Real-time telemetry display
  • Battery & distance monitoring
  • Artificial horizon display

🔹 Additional Features

• Pre-flight checklist system
• Telemetry data logging
• Google Maps integration
• Dynamic mission adjustment

🔹 Operational Details

• Crew Requirement: 1–2 persons
• Packaging: Standard casing with peripherals

🔹 Support & Compliance

• DGCA guideline support
• Technical troubleshooting support
• Warranty: 1 Year
